TE0720 Zynq Module Datasheet

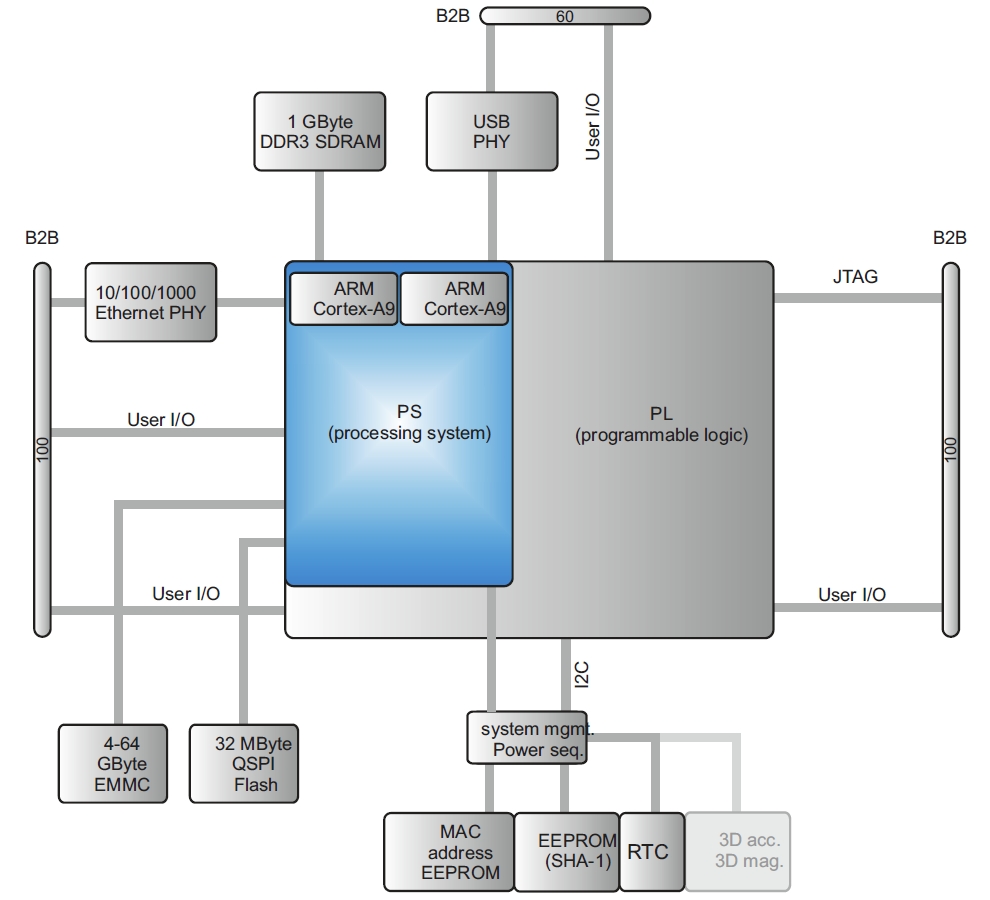

Zynq Module TE0720 TE0720 Block Diagram

Overview

Trenz Electronic TE0720s are industrial-grade SoC modules integrating a Xilinx Zynq Z020 SoC, a gigabit Ethernet transceiver (physical layer), 8 Gbit (1 Gbyte) DDR3 SDRAM with 32-bit width, 32 Mbyte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/Os is provided via rugged high-speed stacking strips. All modules in 5 x 4 cm form factor are fully mechanically and largely electrically compatible among them. All this on a tiny footprint, smaller than a credit card, at the most competitive price. A free and open embedded development suite with reference designs is included.

Key Features

  • Industrial-grade Xilinx Zynq 7000 series SoC module (Z020*)
  • Automotive Grade Zynq Available
    • Rugged for high shock and vibration
  • ARM dual-core Cortex-A9 MPCore @ up to 800 MHz
  • 32-bit wide 8 Gbit DDR3 SDRAM
  • 256 Mbit (32 Mbyte) Quad-SPI Flash memory (for configuration and operation) accessible through:
    • JTAG port (SPI indirect)
    • Gigabit Ethernet
    • PS (processing system)
  • 10/100/1000 tri-speed Gigabit Ethernet transceiver (PHY), SGMII accessible on a board-to-board connector
  • USB 2.0 high speed ULPI transceiver
  • FPGA configuration through:
    • JTAG (B2B connector)
    • SPI Flash memory
    • MicroSD card
  • 4 Gbyte e-NAND (up to 32 GByte)
  • On-board high-efficiency DC-DC converters
  • Plug-on module with two 100-pin and one 60-pin high-speed hermaphroditic stacking strips
  • 152 FPGA I/Os (75 LVDS pairs possible) and 14 MIOs available on board-to-board connectors
  • 4.0 A x 1.0 V power rail
  • 1.5 A x 1.5 V power rail
  • 1.5 A x 1.8 V power rail
  • 8 PS (processing system) MIO (multiplexed I/O) pins
  • 3 user LED
  • Only 5 x 4 cm!
  • eFUSE bit-stream encryption
  • AES bit-stream encryption
  • Valid MAC Address and 2K serial EEPROM
  • SHA-256 authentication chip with unique serial number
  • Evenly spread supply pins for good signal integrity
  • Assembly options for cost or performance optimization available on request
  • Free and open reference designs are available upon request

Heatsink - Spring-Loaded

Heatsink for TE0720

Made especially for TE0720 board, spring-loaded, weight: 60g

Part No. 26922

Package Content

  • 1 Thermal Pad
  • 4 pressure springs
  • 2 spacers
  • 2 washers
  • 4 screws

Embedded Development Suite

A hardware development platform is available. Latest documentation, design support files, reference design source files and tools are available for download free of charge.

* Device supported by the free Xilinx Vivado WebPACK tool.

Available Models

Model FPGA SDRAM Temperature Range Availability
TE0720-03-2IF
XC7Z020-2CLG484I 1 GByte DDR -40 - 85°C 1 - 2 weeks
TE0720-03-L1IF
XC7Z020-L1CLG484I (low power) 1 GByte DDR -40 - 85°C 1 - 2 weeks
TE0720-03-2IFC3
XC7Z020-2CLG484I (low profile) 1 GByte DDR -40 - 85°C 1 - 2 weeks
TE0720-03-1CF XCZ7020-1CLG484C 1 GByte
0 - 70°C 1 - 2 weeks
TE0720-03-1CR XCZ7020-1CLG484C 256 MByte
0 - 70°C 1 - 2 weeks
TE0720-03-1QF
Automotive
XA7Z020-1CLG484Q
1 Gbyte Automotive
-40 - 85°C
1 - 2 weeks

Pricing, Availability and Ordering

  • Concurrent EDA is the US Distributor for Trenz Electronic FPGA Micromodules.
  • Currently Available to US customers only.
  • Please email Ray at This e-mail address is being protected from spambots. You need JavaScript enabled to view it with questions / quotes / orders.
